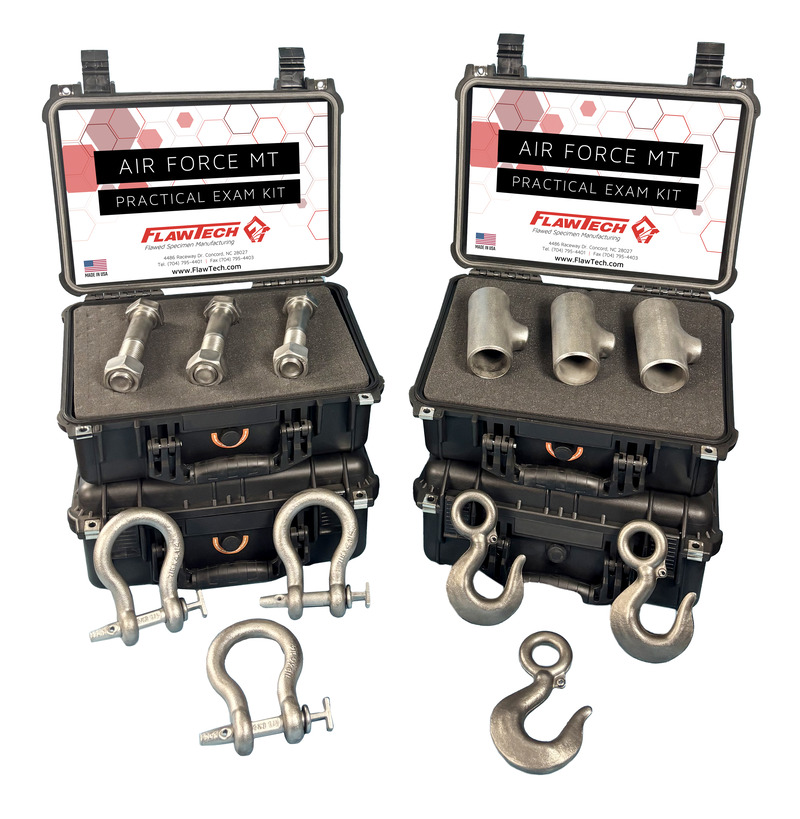

Air Force MT Practical Exam Kit (#AF-1)




Air Force MT Practical Exam Kit (#AF-1)


  • (x1) Kit
  • (x12) Specimens / Kit
    • (x3) Cast Tee Fittings (Ref. Part #P001)
    • (x3) Bolt w/ Nut (Ref. Part #P003)
    • (x3) Eye Hook (Ref. Part #P004)
    • (x3) Shackle & Pin (Ref. Part #P005)
  • Each Specimen Will be Identified with a Unique S/N

(Ex: AF1001, AF1002, etc.)


  • Carbon Steel


  • Each Specimen will Contain (x3) Surface Breaking Indications per Client Instruction for Location, Orientation, Length and Depth
  • Flaw Length / Depth Tolerance (±0.020”)
    • Please Note FlawTech Cannot Guarantee Bleed Out Dimensions
    • Flaw Sizes and Compliance are Based on Mechanical Measurements of the Flaw Taken During Manufacturing, Not NDT Responses

Manufacturing Drawings:

  • FlawTech Will Provide Manufacturing Drawings for Approval

Carrying Cases:

  • Carrying Case Included for Each Specimen Type
    • WEIGHT:             ~15 lbs / Case (x4 Cases)
    • DIMENSIONS:    18 x 14 x 8 in. / Case (x4 Cases)


  • Certificate of Conformance
  • As-Built CAD Drawings (Detailing Flaw Sizes and Location)
  • Test Sheets

Lead Time:

  • ~3 Weeks Manufacturing Time / (x1) Kit, Following Drawing Approval

Additional information

Weight 15 lbs
Dimensions 18 × 14 × 8 in
