Description

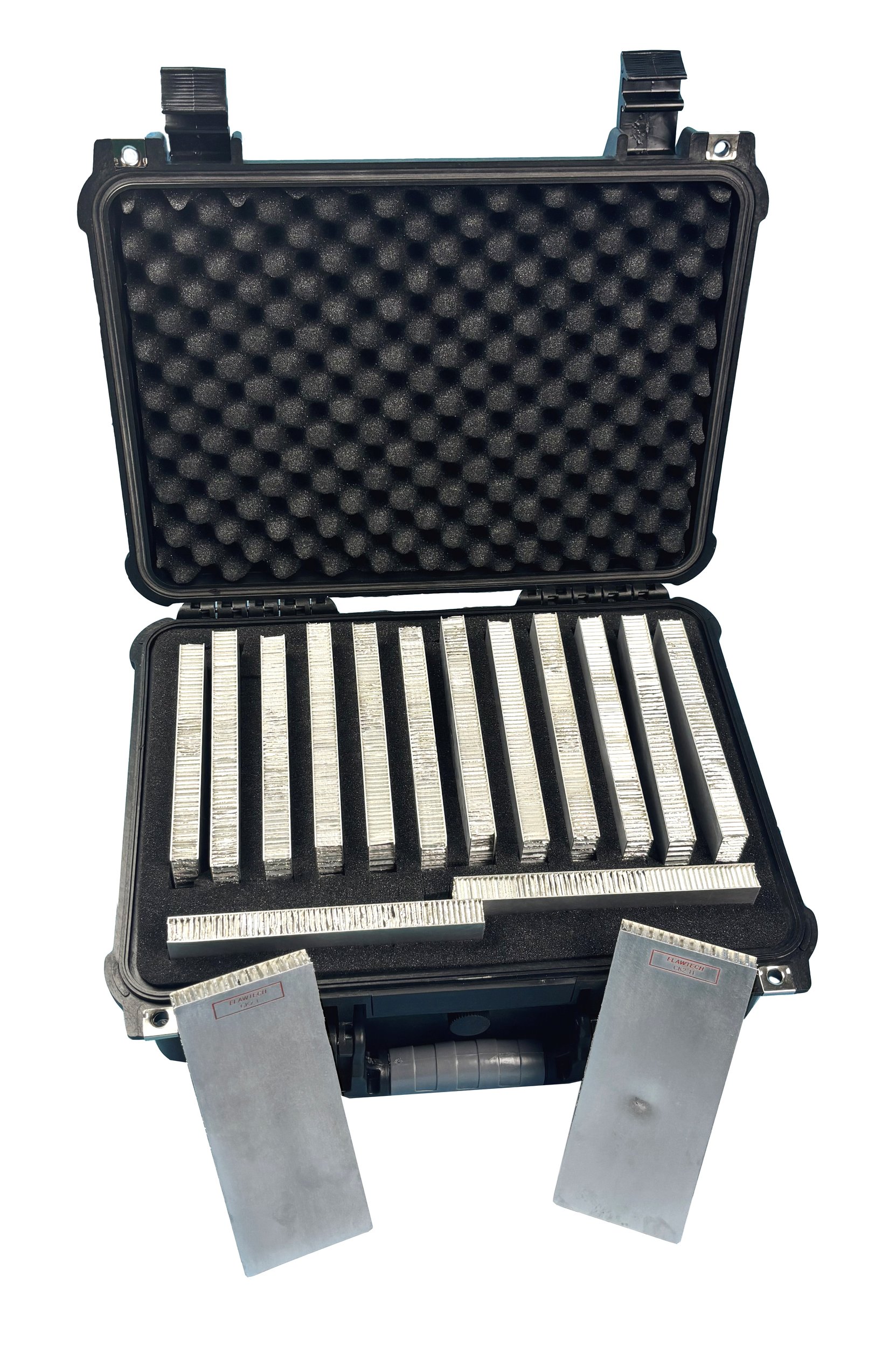

This NEW Composite Training and Testing Flawed Specimen Kit is an introduction tool for Aluminum Sheet / Aluminum Core composites with multiple flaw mechanisms and typical flaws found in this composite’s manufacturing. This kit was designed and manufactured with input from industry SME experts. Another first for our industry.
The Kit exposes the trainee or technician to a wide range of 14 various flaw types.
There are 14 Individual Specimens with a unique flaw found in each. Flaws range from Deformed Core, Condensed Core, Wrinkled Core, Blown (Missing Glue Film), Node-Bond Failure, Core to Skin Disbond, Core Corrosion/Erosion, Adhesive Porosity, Crushed Core, Drilled Core, Repair/Modification, Release Agent, Plastic Patch Repair and Paper Patch Repair. It also comes with our complete document package included.
Material:
- Aluminum
Kit Specifications:
- Total of 14 Specimens
- (1) CK-2-1: Flat Block (0.63” T x 7” x 3”) Flaw – Deformed Core
- (1) CK-2-2: Flat Block (0.63” T x 7” x 3”) Flaw – Condensed Core
- (1) CK-2-3: Flat Block (0.63” T x 7” x 3”) Flaw – Wrinkled Core
- (1) CK-2-4: Flat Block (0.63” T x 7” x 3”) Flaw – Crushed Core
- (1) CK-2-5: Flat Block (0.63” T x 7” x 3”) Flaw – Node-Bond Failure
- (1) CK-2-6: Flat Block (0.63” T x 7” x 3”) Flaw – Skin to Core Disbond
- (1) CK-2-7: Flat Block (0.63” T x 7” x 3”) Flaw – Core Corrosion/Erosion
- (1) CK-2-8: Flat Block (0.63” T x 7” x 3”) Flaw – Adhesive Porosity
- (1) CK-2-9: Flat Block (0.63” T x 7” x 3”) Flaw – Blown (Missing Glue Film)
- (1) CK-2-10: Flat Block (0.63” T x 7” x 3”) Flaw – Drilled Core
- (1) CK-2-11: Flat Block (0.63” T x 7” x 3”) Flaw – Repair/Modification
- (1) CK-2-12: Flat Block (0.63” T x 7” x 3”) Flaw – Release Agent
- (1) CK-2-13: Flat Block (0.63” T x 7” x 3”) Flaw – Plastic Patch Repair
- (1) CK-2-14: Flat Block (0.63” T x 7” x 3”) Flaw – Paper Patch Repair
- Specimens will be identified with a serial number
- Flaws: 1 randomly placed flaw per specimen, for a total of 14 flaws
- Flaws will consist of Deformed Core, Condensed Core, Wrinkled Core, Blown (Missing Glue Film), Node-Bond Failure, Core to Skin Disbond, Core Erosion/Corrosion, Adhesive Porosity, Crushed Core, Drilled Core, Repair/Modification, Release Agent, Plastic Patch Repair and Paper Patch Repair.
Final Documentation:
- Certificate of Conformance, “As Built” CAD drawings and Test Sheets
